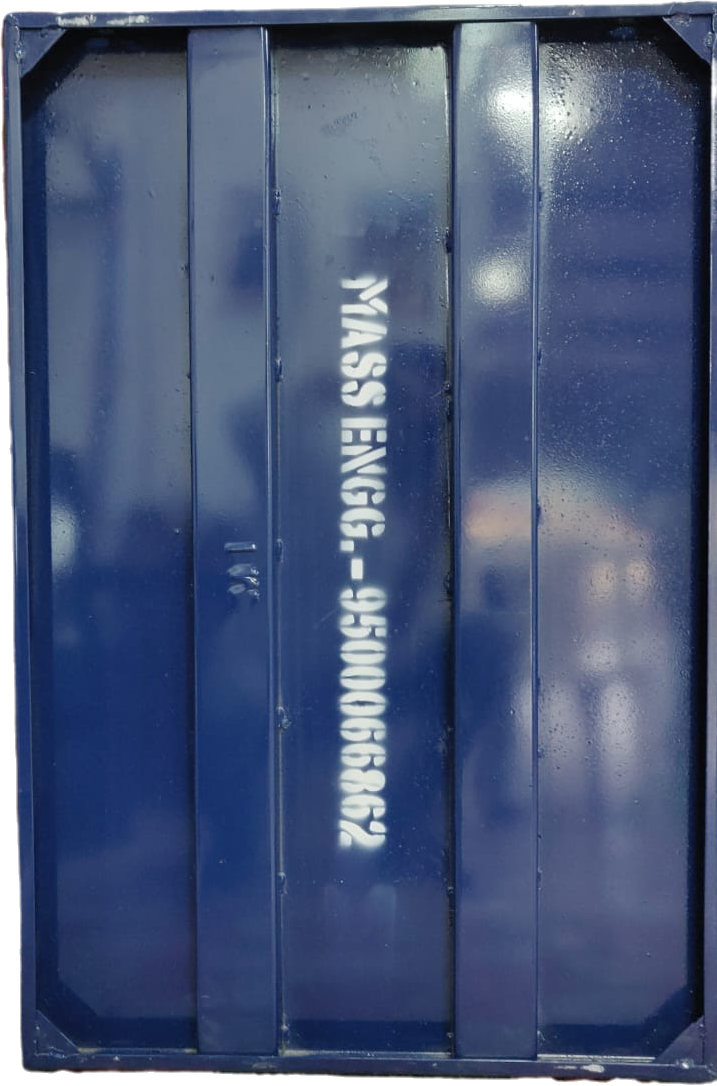

Floor forms are manufactured in 14G,12G (2mm &2.5mm thick) CR /HR Sheets. Rib stiffeners are bent and provided in floor forms to give better load bearing capacity and Gusset plates are welded in the corners to maintain edges even after considerable number of uses.
• Longitudinal Box / Rib Stiffeners
• Perfect Corner Rigidity
• Easy Handling

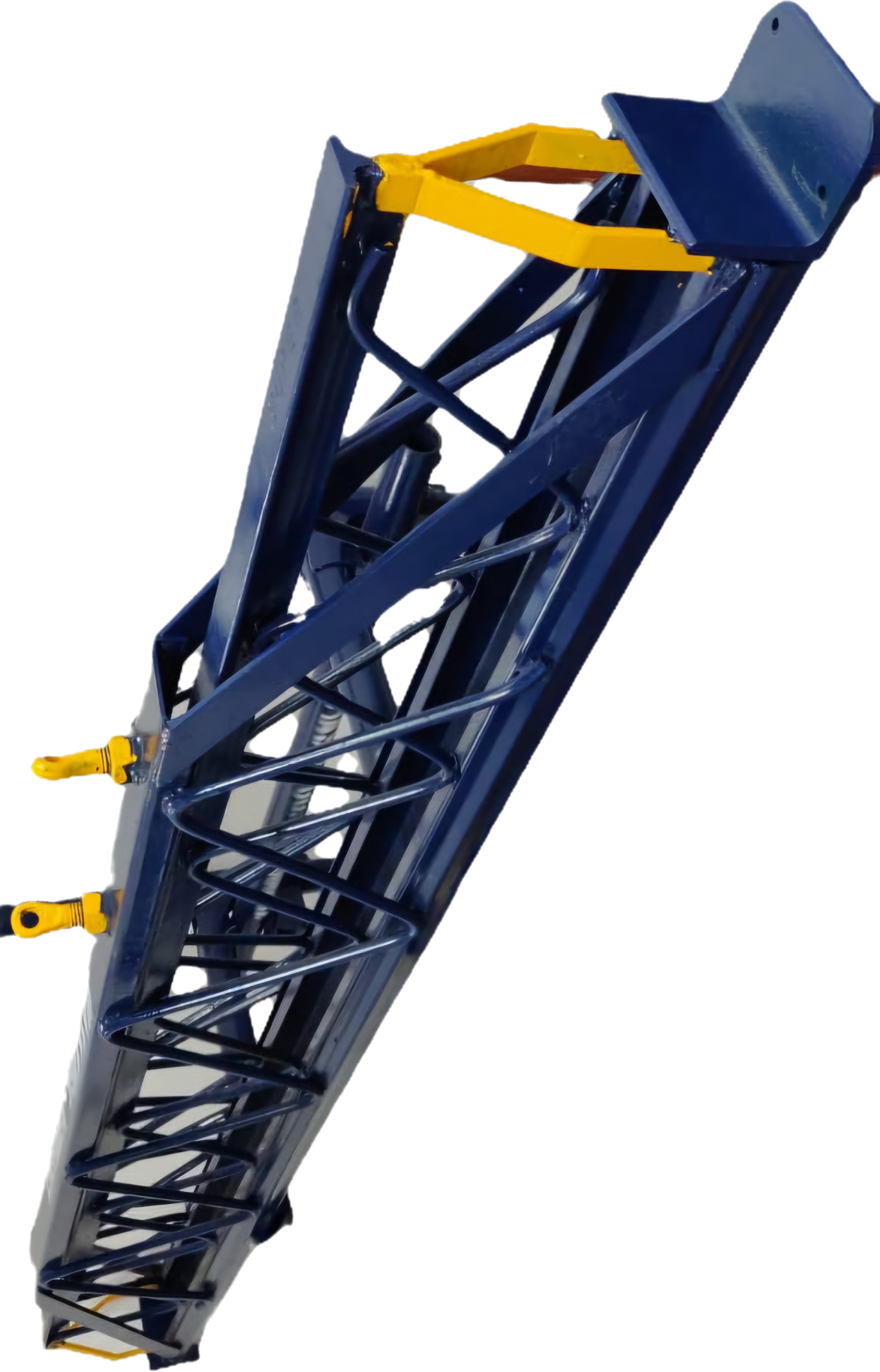

MASS  Telescopic  Span  has a unique design to give exceptionally high load bearing capacity for its low weight. Telescopic  Span consists of an OUTER & INNER member – Both INNER & OUTER members are manufactured in three convenient lengths. Combination of any two, will generally meet the site requirement.

• Exceptionally high load bearing capacity for its low weight.
• Gives maximum safety with minimum supervision.
• Eliminates cost of cutting and wastage of timber.
• Stands up to tough site handling & reduces maintenance cost.
• No intermediate vertical shoring –  free access below.
• Assured load bearing capacity.
• Compact for  storage and transport.

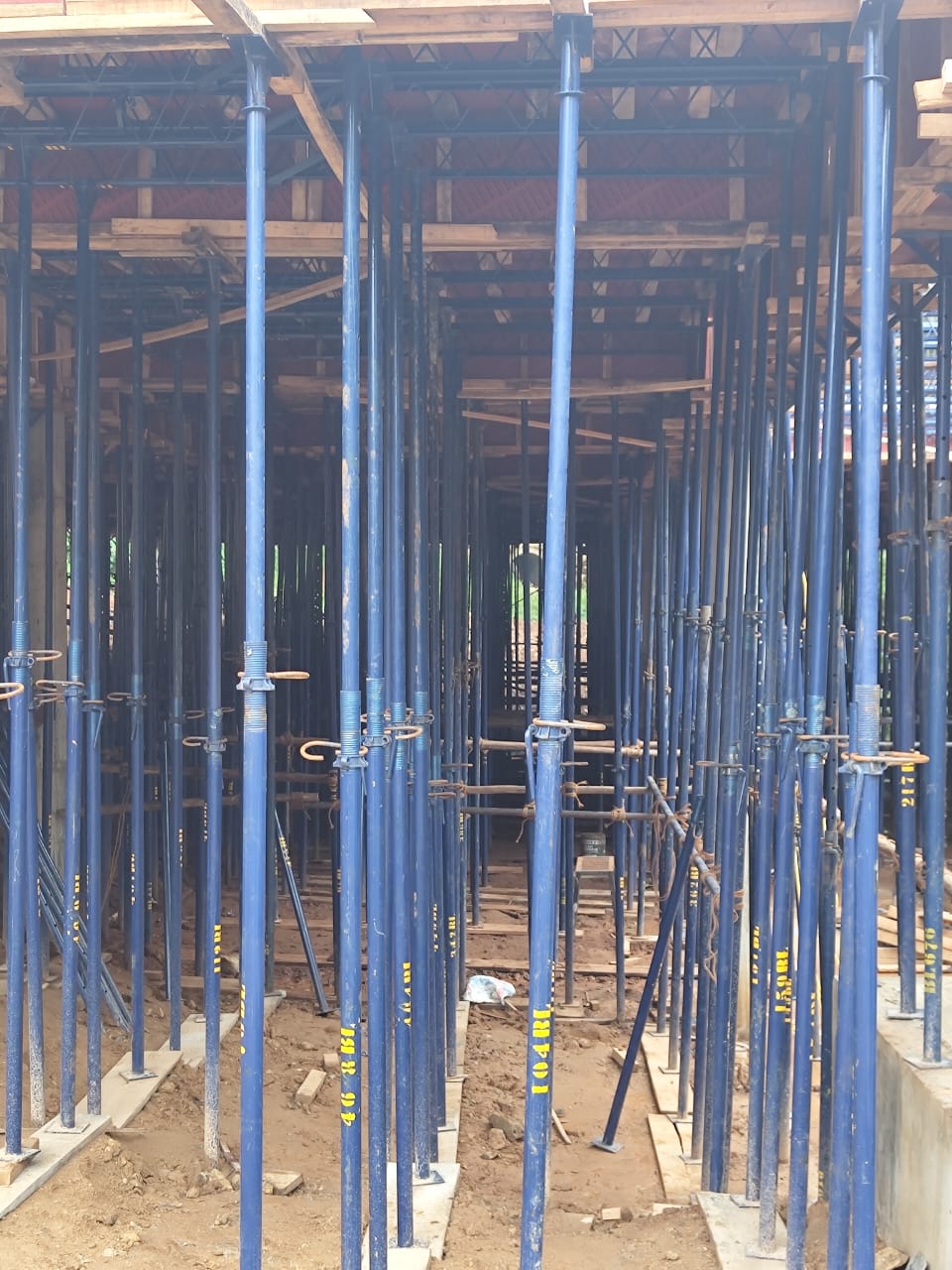

Technical Details
• Steel tubes continuous welded
• Conforms to IS 1239 / 1161 YST 210
• Outer 60.3mm 0D – 50mm Heavy & Medium.
• Inner 48.3mm 0D – 40mm Medium
• Heavy duty Props with ‘C’ Class tubes
• Props used beyond 3.65 Mtrs, inner must be braced and coupler.
• Infinte Adjustment.
• Reliable strength and safety.
• Erected in seconds long life.

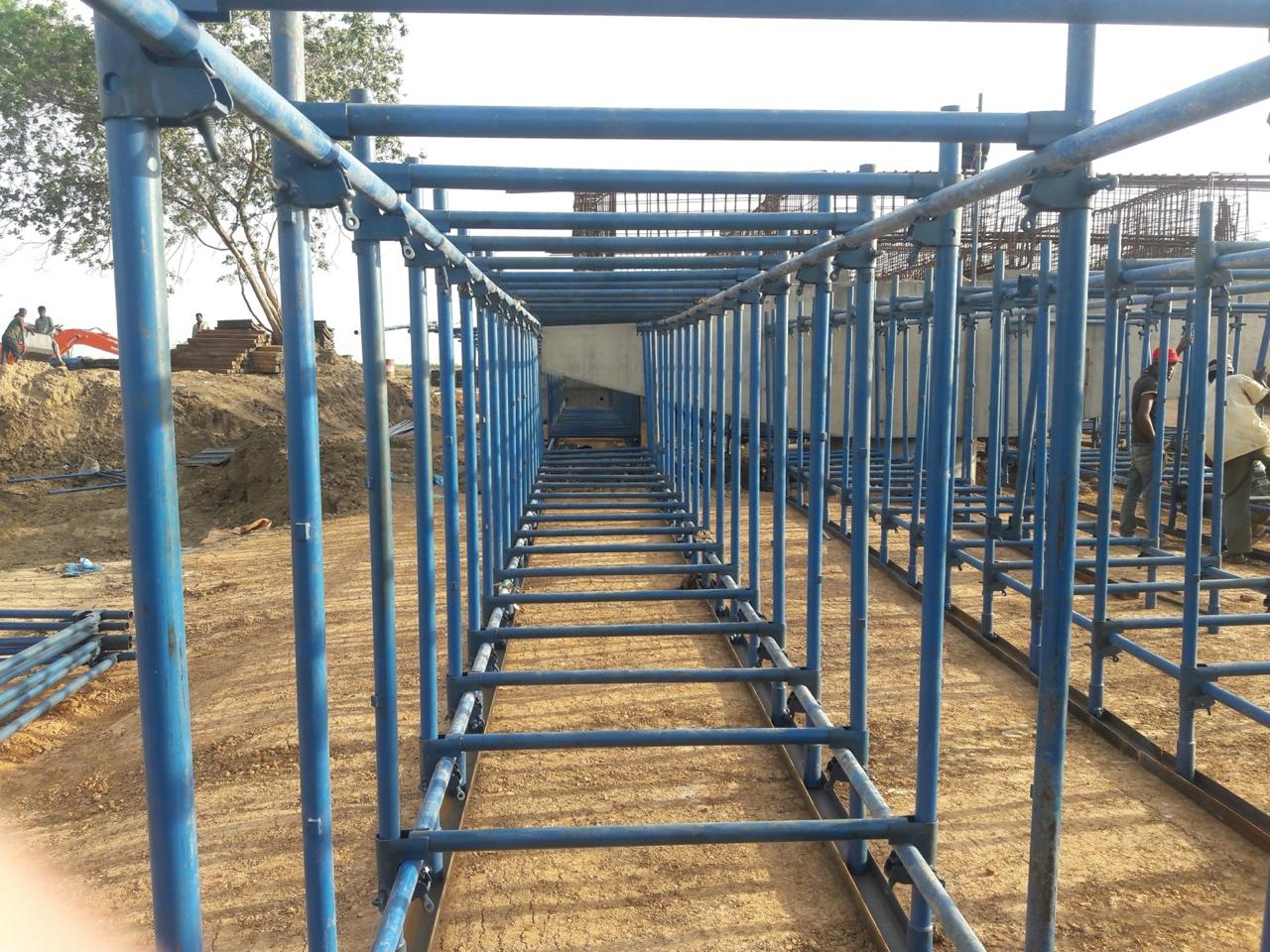

All purpose scaffolding units consist of two verticals of 2mtr long and one horizontal /cross bar of 1.25mtr long, both manufactured out of 40 NB ‘C’ Class / ‘B’ class ERW Medium/Heavy duty pipes and sockets out of 50 NB ‘C’ class / ‘B’ class ERW Heavy dutypipes conforming to IS 1161 grade, Lugs are welded at 500mm centres, provide positive support to specially made “C” clamps welded on to both end of cross bars, which has a unique 3 way coupling. The ledger pipes are connected to cross bar, thus connecting the units.

The wall form system of steel form work gives maximum economy with excellent concrete finish and is used for construction of walls, columns, beams, floors, culverts, docks and precast units. The unique wall form system of steel shuttering comprise of standard panels. Channel or Heavy duty soldiers, Tubes or Channel walers. All these components are assembled together by four types of specially designed clips. The wall form panels & Soldiers are manufactured out of MS slotted angels of 45 x45 x 5mm/50 x 50 x 6mm and 12G/10G M.S sheets to make them rigid & strong. The curvature of waling tube is changed to suit profiles of different diameter shells. Flexible panel match the curvature when connected to waling tubes by single clips. Double adjuster panel files the gap on outer face between flexible panels, since soldiers on both faces have to be in radial alignment to house wall ties. Double adjuster panels are also panels are also used to fill gap in straight wall construction.

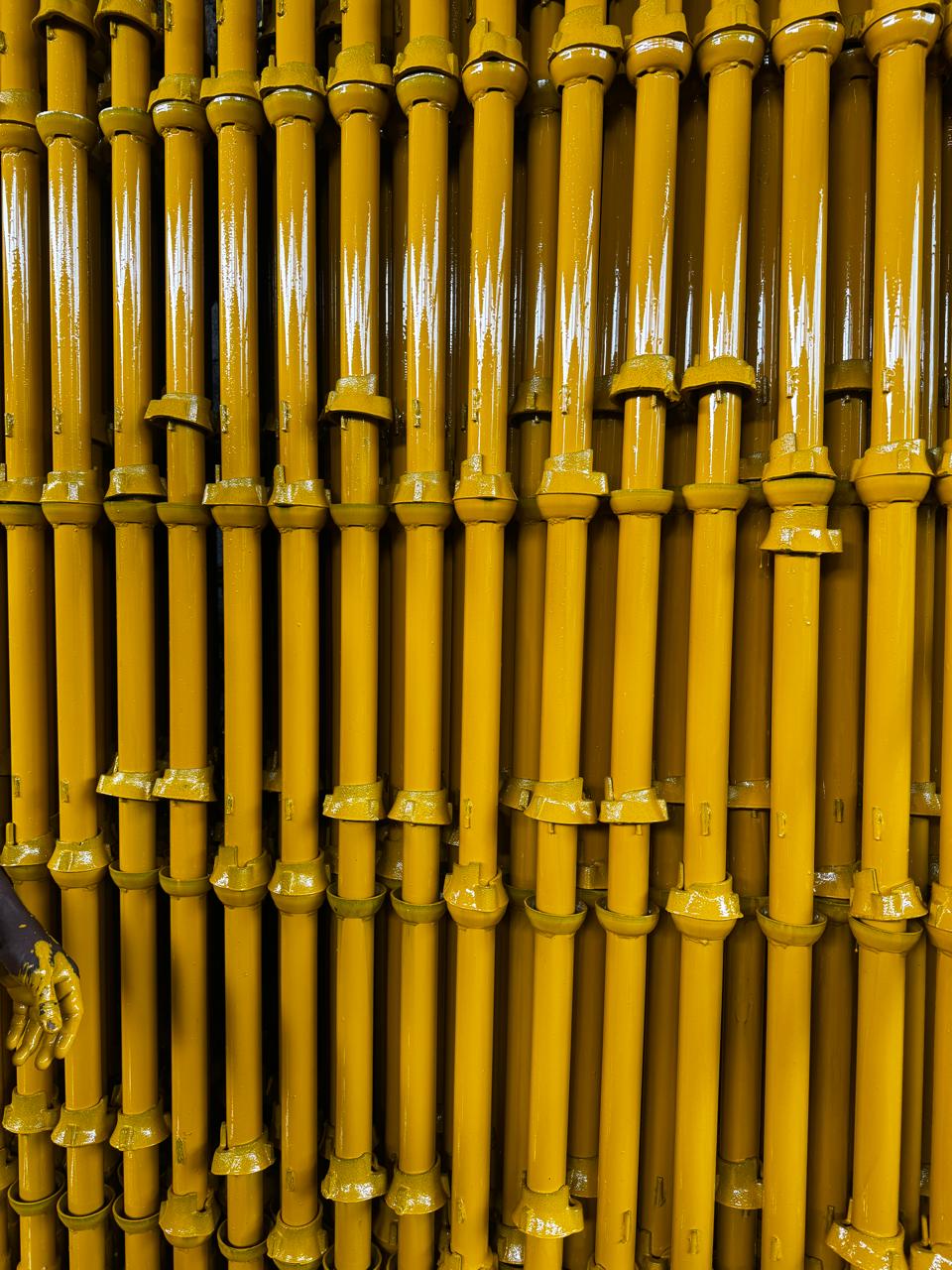

Cup lock / Cup lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups. Single node point action of unique looking make ‘Cuplock/ Cuuplock ‘ a fast, versatile and optimized system of scaffolding for construction, demolition projects throughout the globs.
Features:
• Cuplock system – Easy to STAND – say no to nuts and bolts or wedges. Just a simple locking cup at each node point on the standards enables connection of the ends of up to four members in one locking action.
• Cuplock systems – Versatile!
• Best suitable for access or form work support.
• Cuplock systems – Timely tested and proven design with safety accessories.
• Quick fastiening of horizontals. Only 4 horizontals can be fatened at one time with firm clamping action of top cup making the joint rigid
• Quick/Fast/Solid erection and dismantling results in time and labour saving.
• Lightweight but high loads carrying capacity.
• Low maintenance.
